Simplifying Web Package Deployment with TFS Build


In my last post several months ago I described some of the work we’ve been doing to automate web package deployment using MSDeploy and Team Foundation Server 2010 Build Server. In that post I introduced a number of “hard coded” customisations to the Default Template workflow script that is used to drive the TFS Build.

Recently I’ve been refining this script further to allow the reuse of the unmodified workflow scripts between projects through the use of XAML arguments, and thought I might share the output.

Parameterising the MS Deploy activity

This post will focus on modifications to the standard workflow template to allow for an MS Deploy activity to be invoked based purely on the build definition, rather than customising the workflow for each team project.

Step 1: Add parameters to the Default Template xaml file

I did take one shortcut at this stage – the ‘ideal’ approach to collecting the deployment parameter information would be to create a strong typed object structure, then import that into the build process. I’m trying to avoid this at the moment, as we don’t currently need any custom assemblies for the build process and I’m trying to avoid adding extra dependencies.

Therefore I have used the very limited approach of defining a single set of deployment arguments, as opposed to a nice and tidy collection of strongly typed objects we could loop though.

The parameters being added are as follows:

  • Deploy Package 1 (default false)
  • Deploy Package 1 Package Path
  • Deploy Package 1 Script
  • Deploy Package 1 Script Args

Step 2: Setup the metadata to group the deployment arguments

By default, all the added arguments will be added to the “Misc” category in the Build Definition Editor. Once you’ve added more than a couple of customizations this becomes fairly confusing so it is important to setup the metadata as you go.

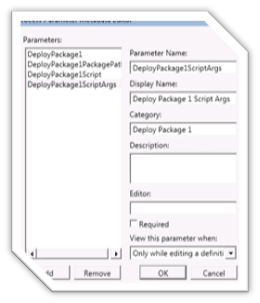

  1. Find the Metadata argument within the Arguments list
  2. Click the ‘…’ button top open the dialog editor
  3. Add a new entry for each new argument added
  4. Ensure that the Category is the same for each parameter to ensure they are grouped together

Step 3: Modify the Invoke Process activity to use the arguments

For this demonstration I’ve chosen to trigger the deployment immediately after the “Try Compile, Test and Associate Changesets and Work Items block”. This is convenient, since it is directly after the output directories are populated – though I am not yet sure that this step will stay here once the integration tests are plugged in.

The parameterized activity results in the following xaml being produced.

<If Condition=[DeployPackage1]DisplayName=If Deploy Package 1
<Sequence DisplayName=Deploy Package 1tbwt:BuildTrackingParticipant.Importance=Low>
<mtbwa:InvokeProcess Arguments=[DeployPackage1ScriptArgs]DisplayName=Deploy Package 1
FileName=[String.Format(&quot;{0}\{1}&quot;, BuildDetail.DropLocation, DeployPackage1Script)]

You’ll note that I’ve wrapped the old Invoke Process activity in a new If block – the primary purpose of this is to allow us to use this workflow even for projects that do not use the build features.

Note: Don’t forget to check-in your xaml changes at this point – otherwise you will not be able to set any of your new arguments in the build definition editor!

Step 4: Setup the Build Definition

Note that this assumes you have already prepared your destination server to allow for remote deployments. See my previous post on Using TFS Build Server for Continuous Integration for help with this configuration if necessary.

The final step is to setup the build definition.

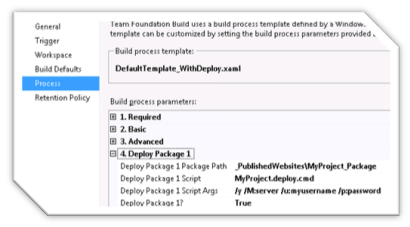

  1. Create a new Build Definition
  2. On the Process tab, note that a new category for “Deploy Package 1” is now displayed
  3. Enter the path to your deployment package, relative to the output directory. Typically this is _PublishedWebsites\MyProject_Package.
  4. Enter the name of the generated command script file.
  5. Enter the arguments required for the command script file. Typically this is /y /M:ServerName /u:UserName /p:Password.
  6. Change the Deploy Package 1 flag to true.

Step 5: Trigger a build, and watch it work!

Whats Next?

There are a number of changes that we have introduced to the standard workflow, that I will endeavour to describe in my next few posts;

  • Cleaning up the Output Directory to include only packages
  • Running Integration tests post-deployment
  • Using transformations on the integration test app.config file to modify the target endpoints for testing
